수냉식 나사 냉각기

Niasi Factory의 워터 냉각 나사 냉각기는 신뢰할 수 있고 안정적인 고효율 품질과 결합하여 절묘하고 컴팩트 한 외부 디자인을 특징으로하며 업계의 유사한 제품과 구별됩니다. 이러한 특성으로 인해 물 냉각 나사 냉각기는 업계의 리더로 눈에 띄게하여 사용자에게 신뢰할 수 있고 효율적인 냉장 솔루션을 제공합니다.

문의 보내기

제품 설명

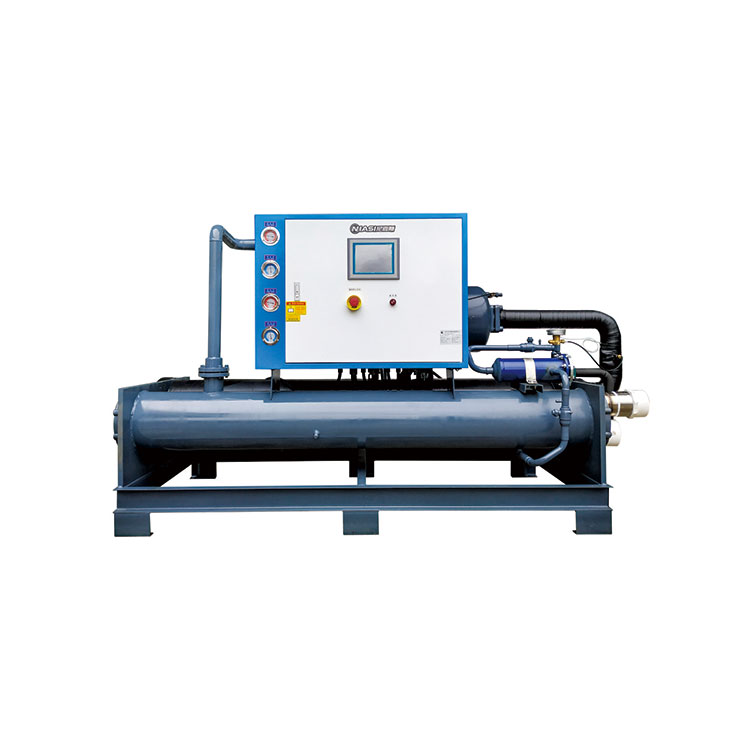

Water Cooled Screw Chiller

Niasi Factory's Water Cooled Screw Chiller features exquisite and compact exterior designs, coupled with reliable and stable high-efficiency quality, distinguishing them from similar products in the industry. These characteristics make Water Cooled Screw Chiller stand out as leaders in the industry, providing users with reliable and efficient refrigeration solutions.

The Water Cooled Screw Chiller produced by Niasi Factory does indeed utilize internationally renowned brands' high-efficiency and energy-saving screw compressors, ensuring the unit's high efficiency and energy-saving performance. The matching high-quality and high-efficiency copper tubes used in the condenser and evaporator, along with world-renowned brand control components, further enhance the performance and stability of the unit. These advantages make the Water Cooled Screw Chiller excel in terms of volume, noise, energy efficiency, lifespan, and ease of operation.

Sort			Single Compressor Series
Parameters/Type			NC-40WSS	NC-50WSS	NC-60WSS	NC-70WSS	NC-90WSS	NC-100WSS	NC-120WSS	NC-140WSS	NC-160WSS	NC-180WSS	NC-200WSS	NC-220WSS	NC-240WSS
Rated Cooling Capacity	50HZ	Btu/h	513807	653440	706698	819701	947385	11648571	1402813	1671153	1867458	2116680	2332445	2490172	2852738
		Kcal/h	129407	164574	177988	206449	238607	293379	353310	420894	470335	533104	587446	627171	718487
		KW	150.5	191.4	207	240.1	277.5	341.2	410.9	489.5	547	620	683.2	729.4	835.6
		USRT	42.8	54.4	58.9	68.3	78.9	97.0	116.8	139.2	155.5	176.3	194.3	207.4	237.6
Input Power Supply									~380V	/3PHASE	/Hz
Input Power		KW	29.9	37.2	39.9	46.3	53	64	77	90.6	100.3	110.9	122.2	130.5	159.9
Cooling Loop			1	1	1	1	1	1	1	1	1	1	1	1	1
Coolant Flow Contorol			Thermostatic Expan Sion Valve						Elecronic Expansion Vlave(ptional)
Input Power Supply			R22/407C/134A
Compre ssor	Patter		Semi-hermetic Screw Expan sion Valve
	Quantity		1	1	1	1	1	1	1	1	1	1	1	1	1
	Starting Method		Y-Start
	Capacty Cotrdl	%	100-75-50-25
Condensr	款式 Pattern		High Effective inner Grooved Copper Shell and pole
Condensr	数量 Quantity		1	1	1	1	1	1	1	1	1	1	1	1	1
The Pressure Loss ofCooing Water		kap	40	40	40	40	40	50	50	50	50	50	50	50	50
Flow of Free zing Water		m3/h	30.9	39.2	42.3	49.1	56.7	69.5	83.6	99.4	110.0	125.3	138.1	147.4	170.7
Evaporator	Pattern			Tube -nshellHat Exchanger
Evaporator	Quantity		1	1	1	1	1	1	1	1	1	1	1	1	1
The pressureloss of Coding Water		Kpa	65	65	65	65	65	72	72	72	72	72	72	72	72
Flow of Freezing Water		m3/h	25.8	32.8	35.5	41.2	47.6	58.5	70.4	83.9	93.8	106.3	117.1	125.0	143.2
Temperature Controller			Effictive Inner grooved Copper Shell Heat Exxhanger
Safety Device			High/low pressure switch, exhaust overheat protection, hot melt plug, anti-freeze thermostat, compressor thermal protector, overcurrent relay, phase sequence/lack protector, oil pressure protection.
Pipes Connection	Freezing water Flowin Out	Inch	3	3	3	3	3	4	4	4	4	5	5	5	5
Pipes Connection	Freezing water Flowin Out	Inch	3	3	3	4	4	4	5	5	5	5	5	5	6
Machine Weight		Kg	750	850	900	1100	1280	1600	1800	2080	2200	2700	2900	3000	3400
Running Weight		Kg	920	1000	1100	1300	1500	2000	2200	2600	2800	3400	3600	3800	4300
